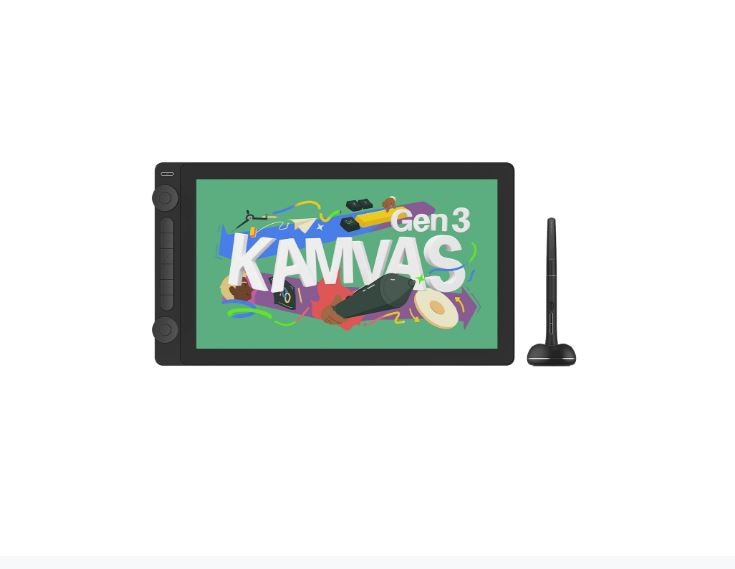

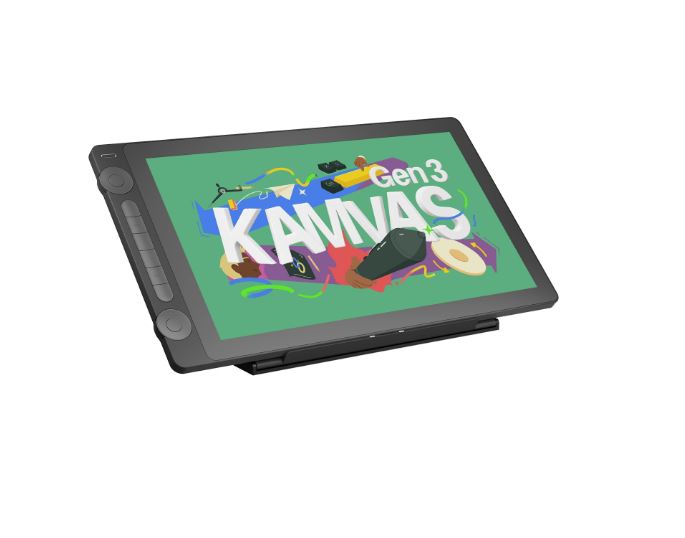

Product Name Kamvas 16 (Gen 3)
Product Model GS1563
Color Black
Panel Size 15.8" (Diagonal)
Resolution 2560 x 1440 (16:9) QHD
PPI (Pixels Per Inch) 186PPI
LCD Type IPS 60Hz
Active Area 349.6 x 196.7mm
Contrast Ratio 1000:1
Brightness 220nit (Typ.)
Response Time 14ms (Typ.)
Viewing Angle 89°/89°(H)/89°/89°(V) (Typ.) (CR>10)
Color Gamut Volume 120% sRGB

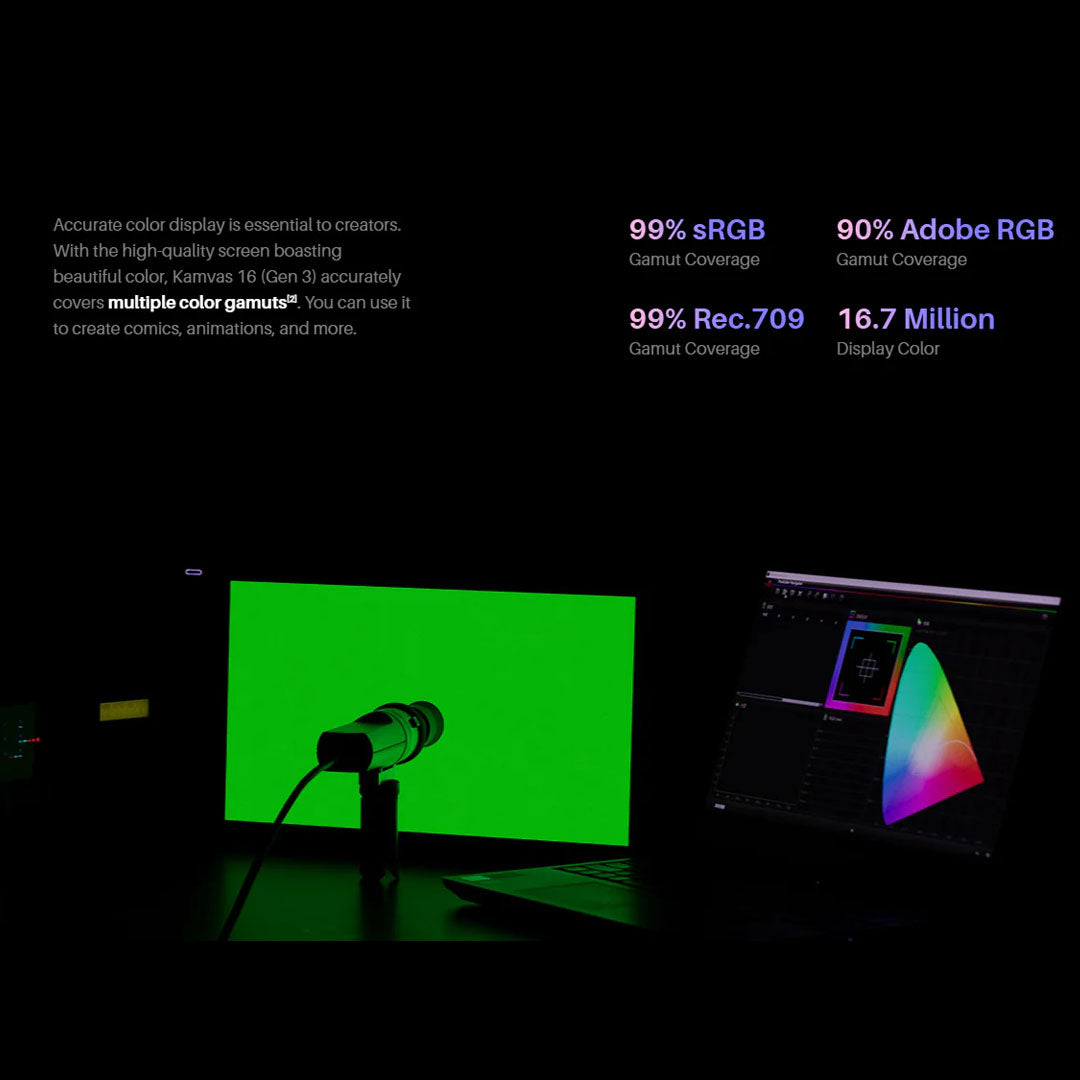

Color Gamut Coverage 99%sRGB / 99%Rec.709 / 90%Adobe RGB
Display Color 16.7M (8bit)
Screen Finish 2nd Gen Anti-glare Etched Glass

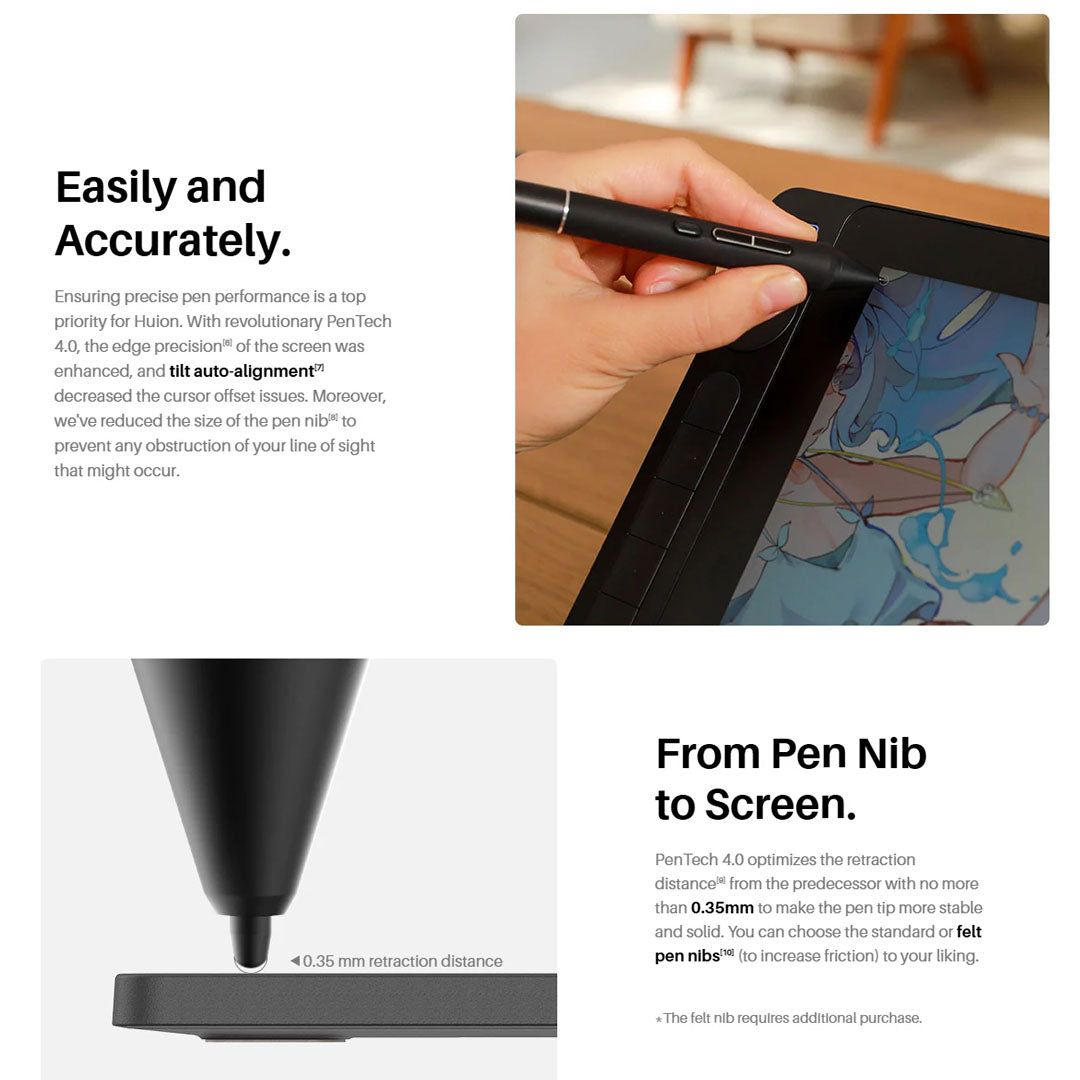

Pen Technology Pentech 4.0
Pen Resolution 5080LPI

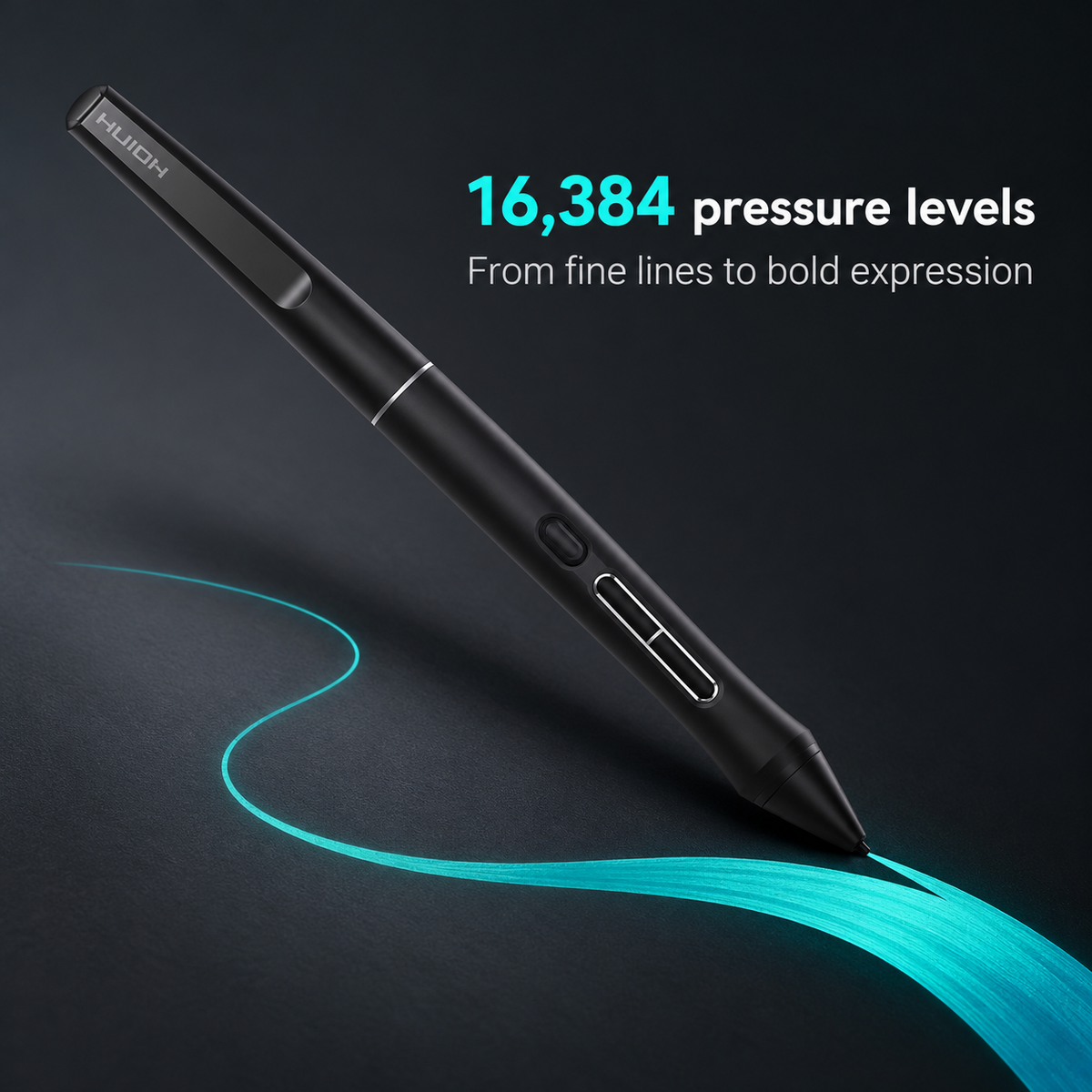

Pressure Levels 16384Levels
Accuracy ±0.3mm (Center) ±2mm (Corner)
Reading Height 10mm
Tilt Recognition ±60°
Finger Touch -

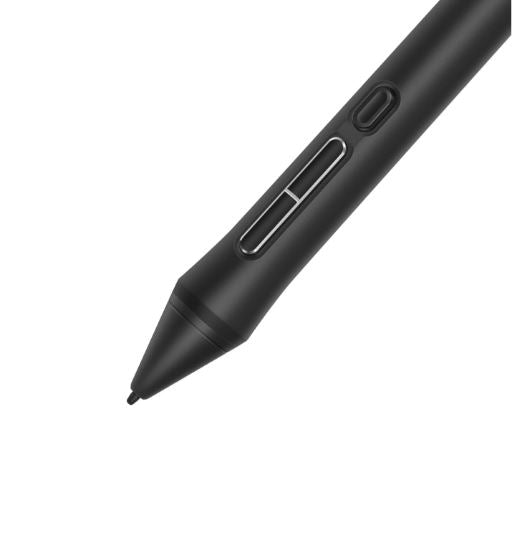

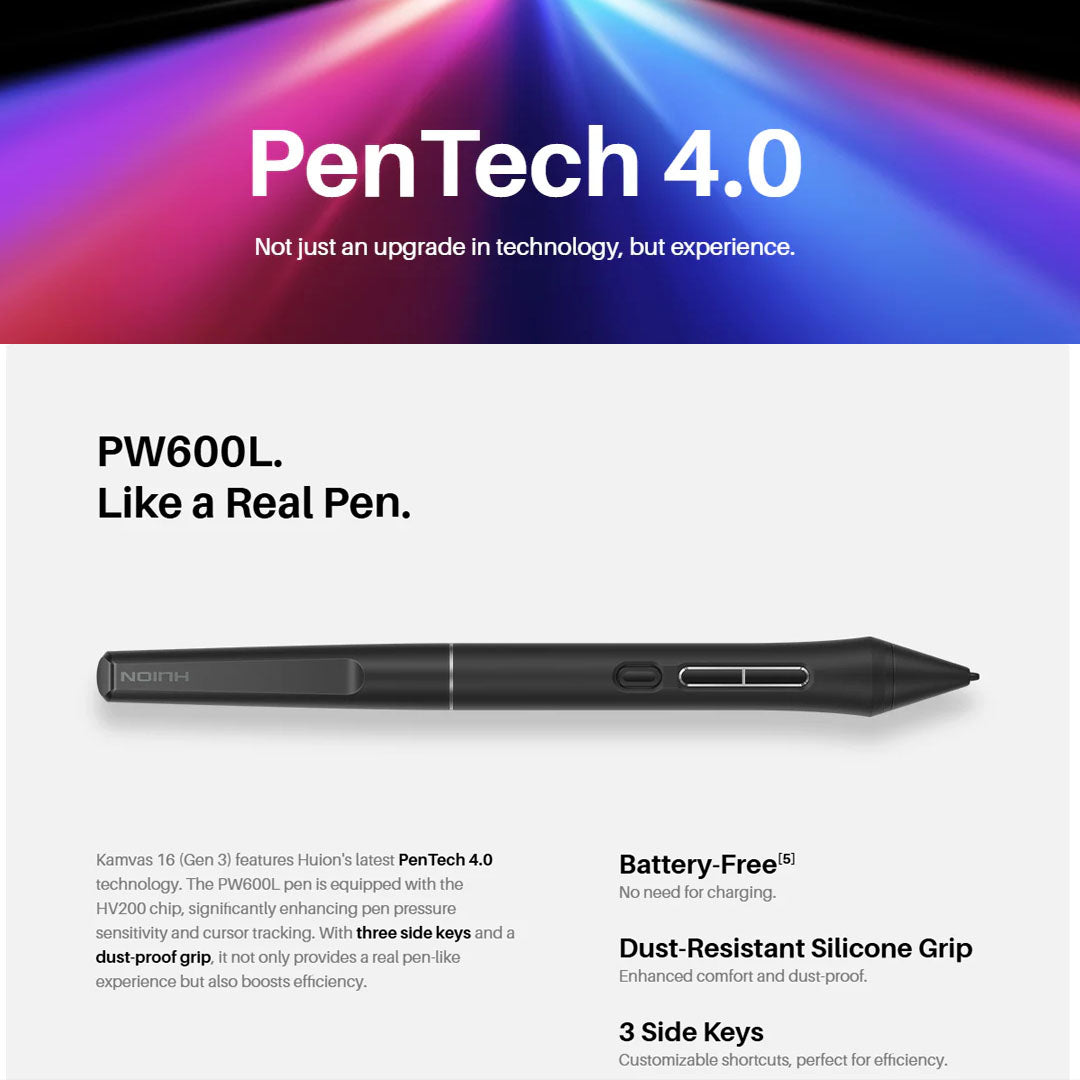

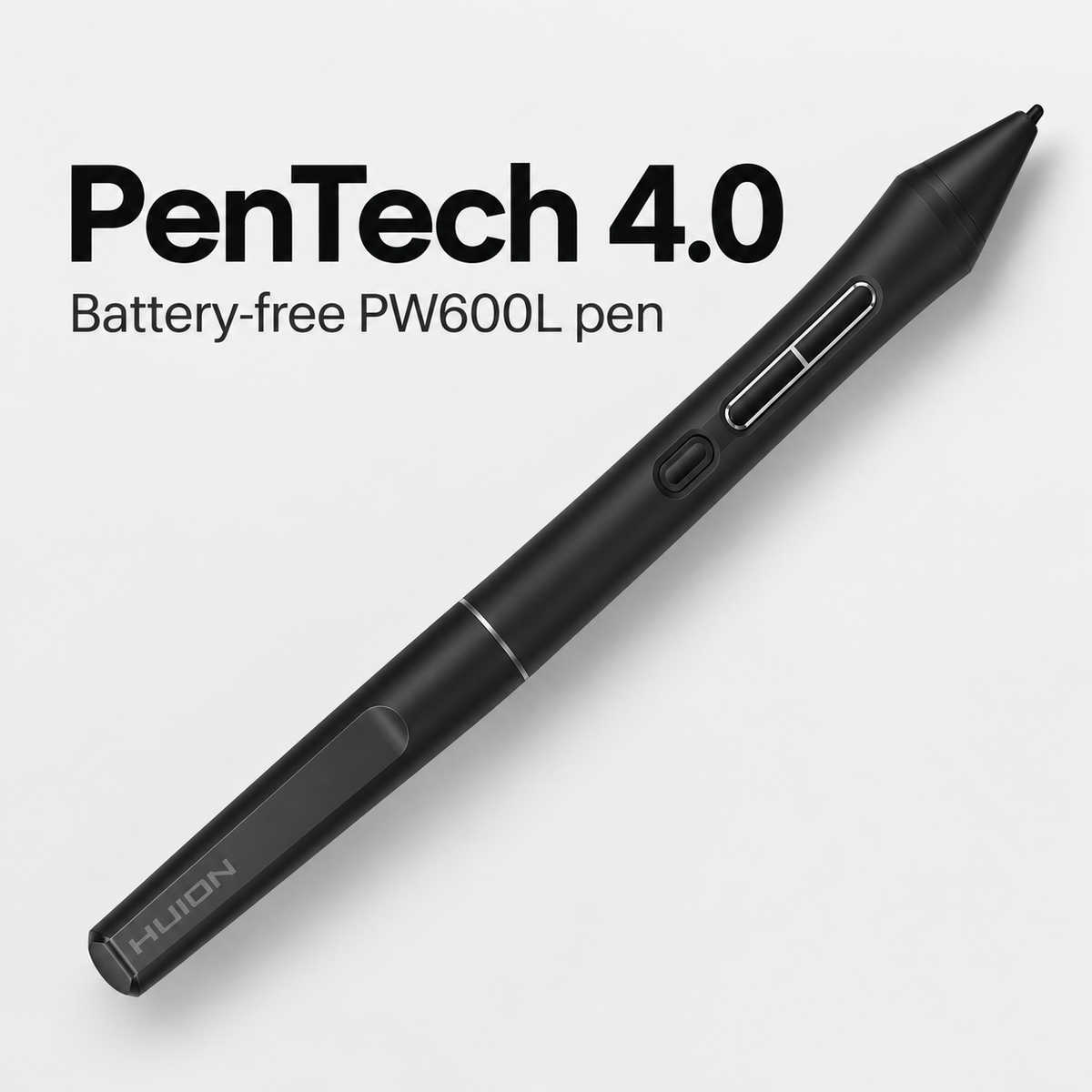

Digital Pen PW600L
Input Voltage AC 100-240V, 50/60Hz
Output Voltage 5V 3A

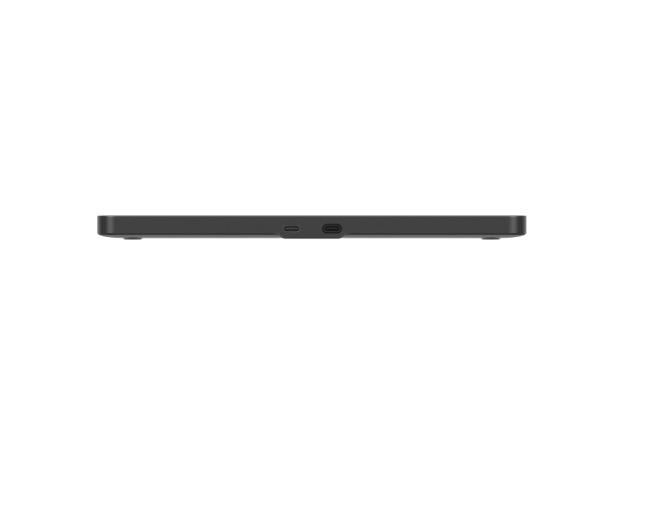

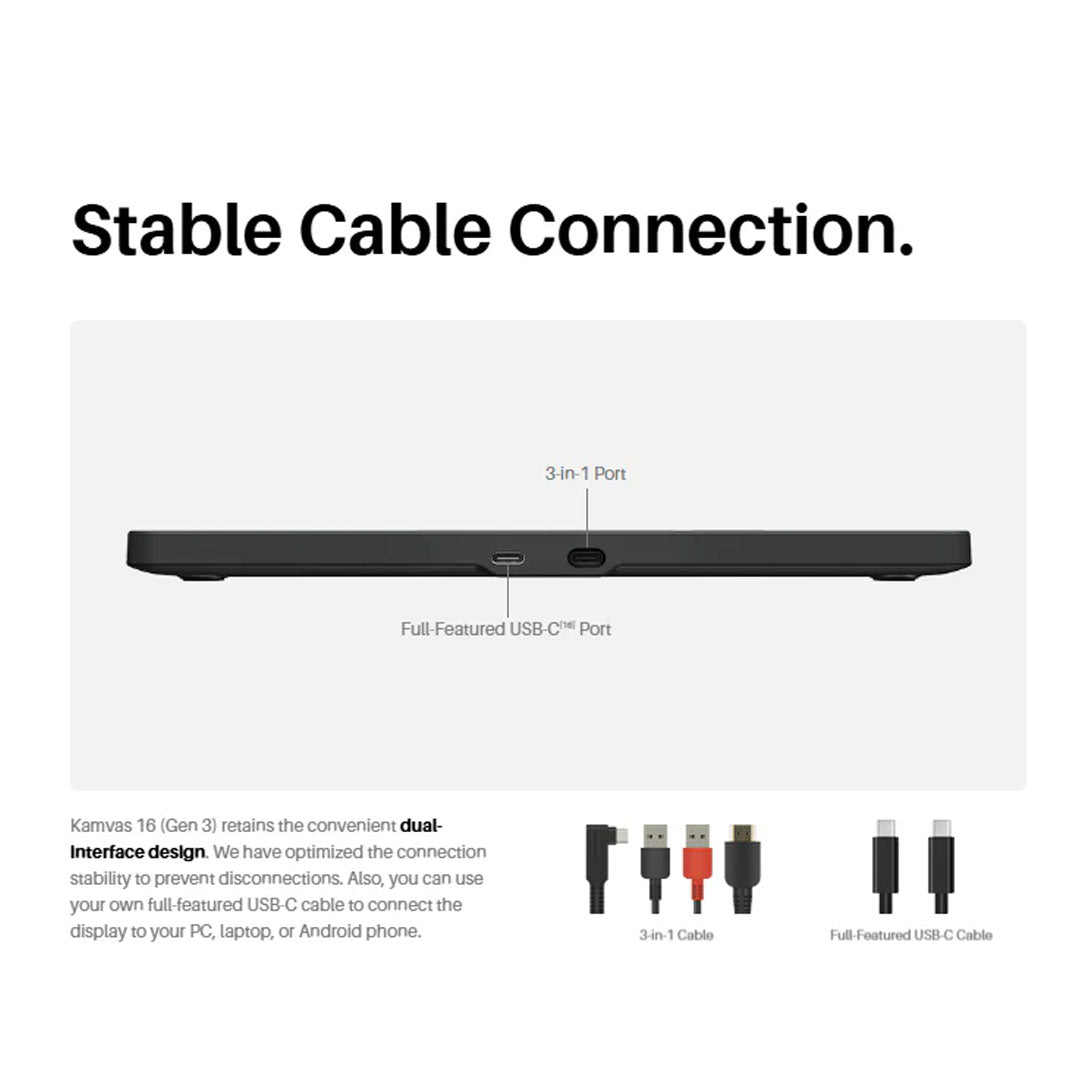

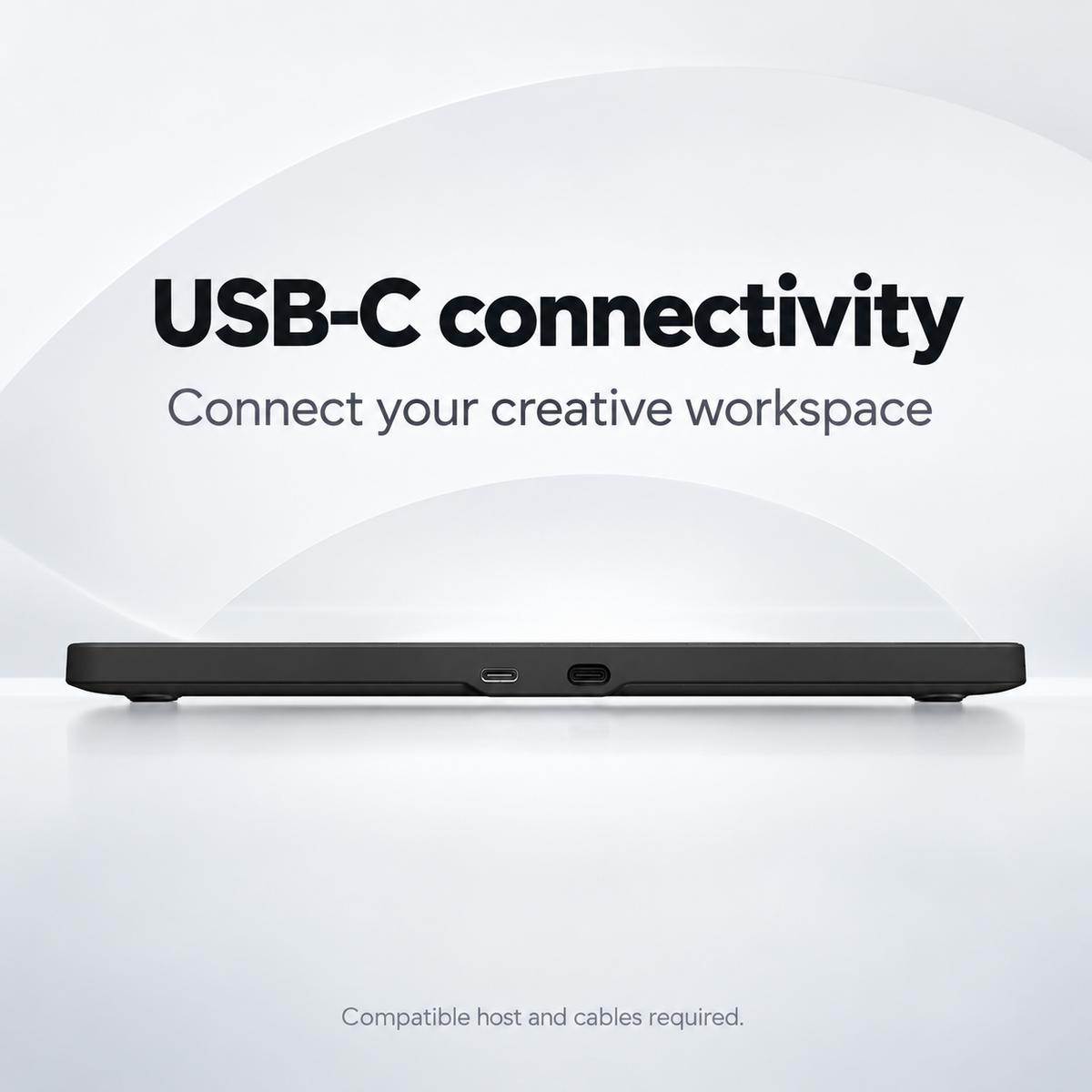

Video Interface USB-C (HDMI Signal) Full-featured USB-C (DP Signal)

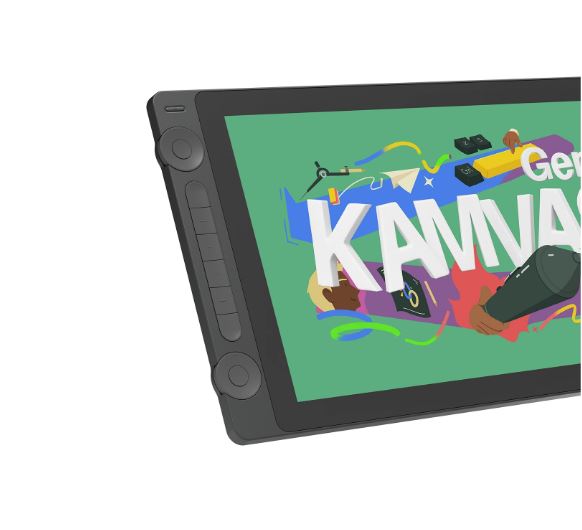

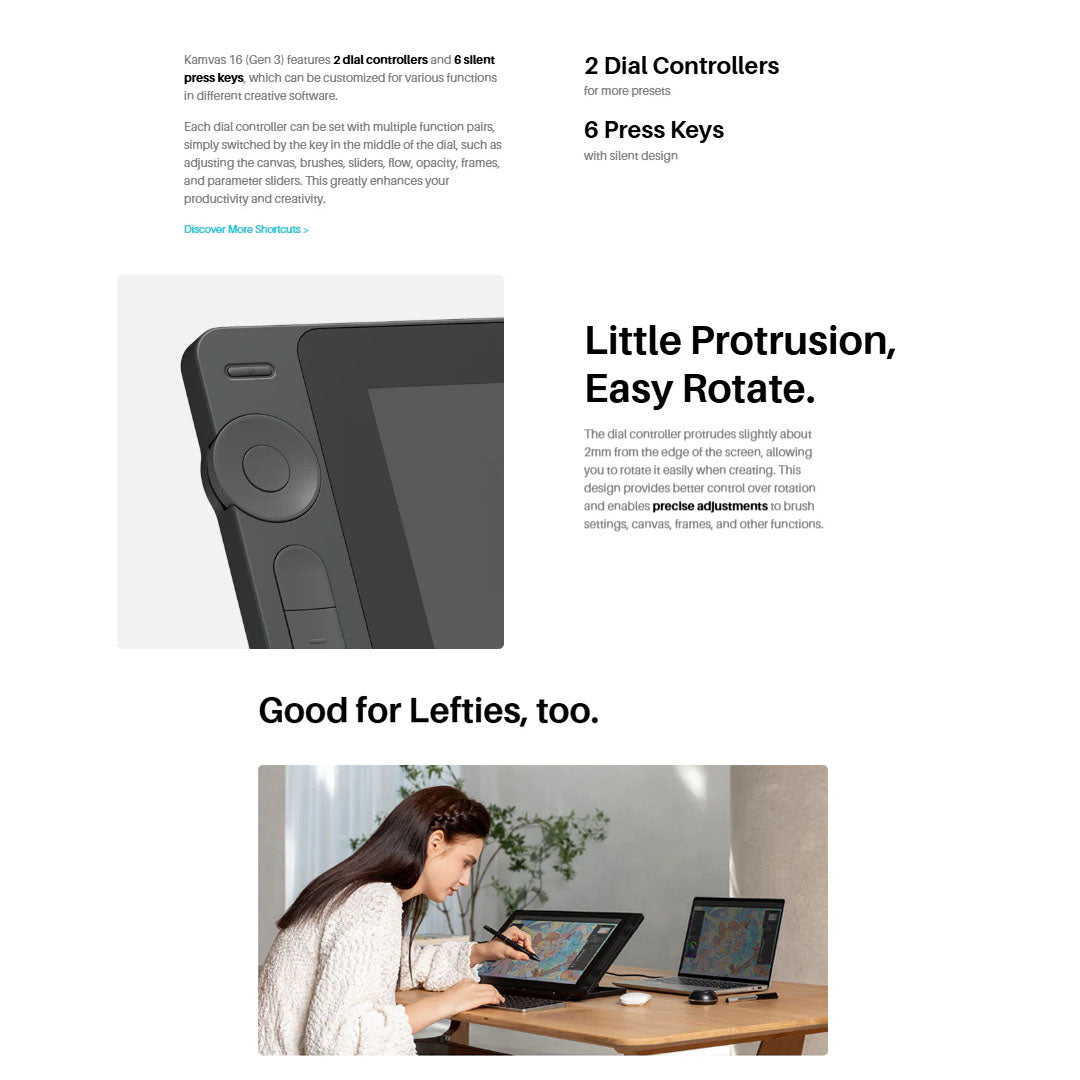

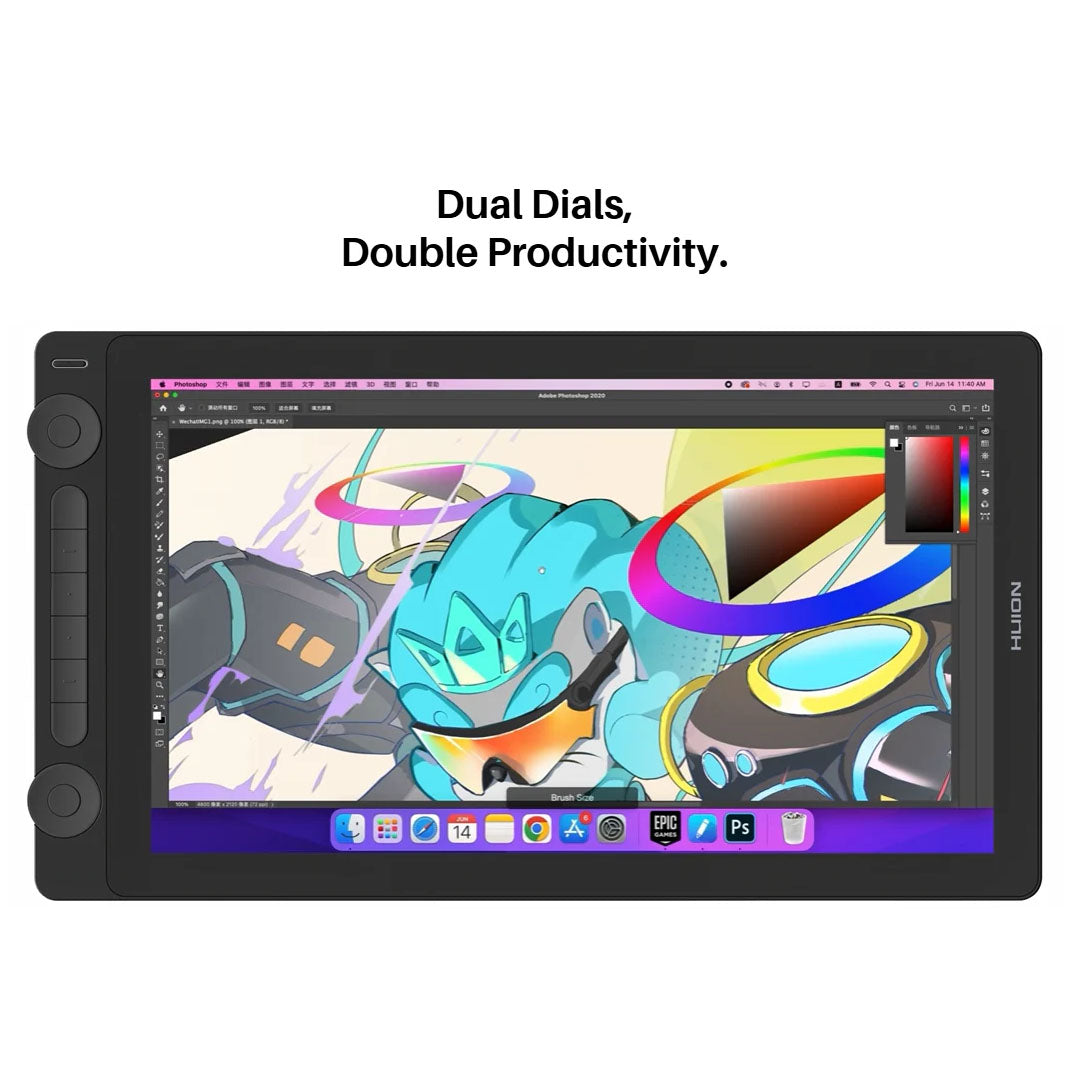

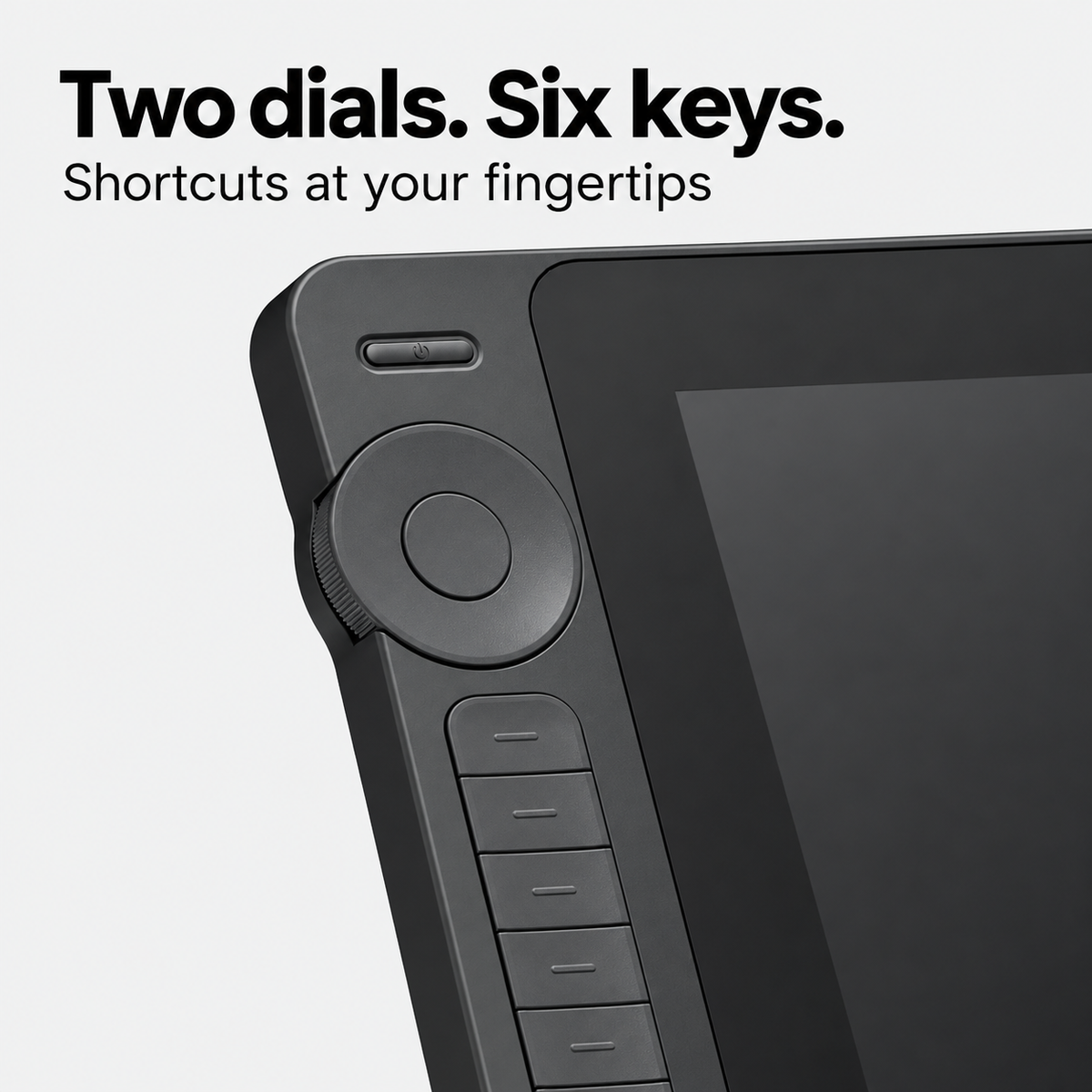

Press Keys 6 Programmable Press Keys 2 Dial Controllers 2 Function-switch button

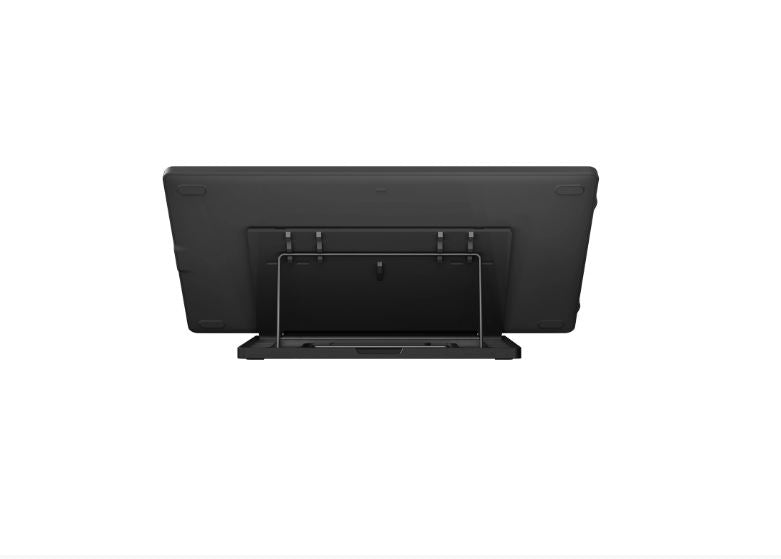

Adjustable Stand ST300
OS Support Windows 7 or later macOS 10.12 or later Android (USB3.1 DP1.2 or later) Linux (Ubuntu 20.04 LTS)
Full Lamination Yes
Power Consumption ≤10W
Working Temp. and Humidity 0-40°C, 20-80%
Storage Temp. and Humidity -20°C~60°C, 10-90%
Dimension 421.2 x 236.81 x 12.62mm
Net Weight 1.2kg
VESA Compatibility -
